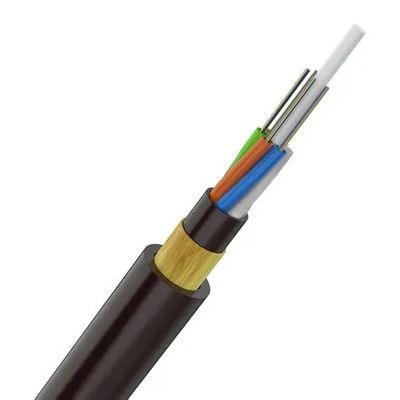

High Tensile Strength DJ ADSS Fiber Optic Cable 2 12 Core Loose Tube All Dielectric Self Supporting For Aerial Power Line
ADSS fiber optic cable high tensile strength
,ADSS fiber optic cable 12 core loose tube
,ADSS fiber optic cable aerial power line
Product Name
High Strength DJ ADSS Fiber Optic Cable – 2 to 12 Core Loose Tube All Dielectric Self Supporting for Aerial Power Line
Product Description

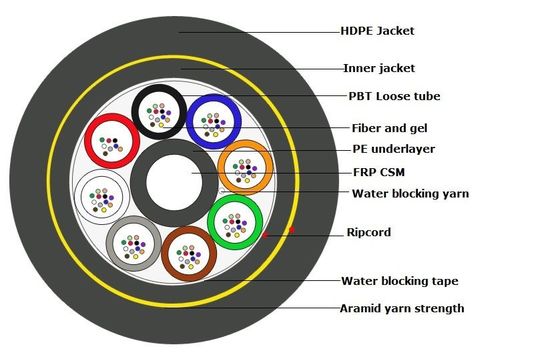

DJ ADSS (All Dielectric Self Supporting) fiber optic cable is designed for aerial installation along power transmission lines. It adopts a loose tube design with 2 to 12 fibers, filled with water-blocking gel for reliable fiber protection. The cable uses FRP (Fiber Reinforced Plastic) strength members instead of metallic materials, ensuring lightweight, non-conductive, and high tensile strength. With a UV-resistant PE outer jacket, it performs stably in harsh outdoor environments and supports long-span installations.
Technical Specifications
-
Cable Type: DJ ADSS (All Dielectric Self Supporting)
-
Fiber Count: 2–12 cores
-
Fiber Type: Singlemode G.652D / G.657A1 (optional)
-
Strength Member: FRP (non-metallic)
-
Outer Jacket: PE
-
Tensile Strength: Up to 1200–1500 N (depending on span)
-
Span Length: Suitable for up to 150m span
-
Operating Temperature: -40℃ ~ +70℃
-
Installation Method: Aerial, on power line towers and poles
Applications
-
Aerial installation along power transmission and distribution lines
-
Outdoor long-span communication networks
-
Electrical utility and telecommunication joint projects
-
Harsh environment areas with strong wind, ice, or lightning risk
Key Features
-
High tensile strength, ideal for long-span aerial power line applications
-
All dielectric structure, safe and non-conductive for high voltage environments
-
FRP strength members provide lightweight and durable performance
-
Waterproof and UV resistant PE jacket ensures long service life
-
Available in 2–12 fibers for flexible network design
