SJ ADSS Optical Cable Singlemode G652D FRP Strength Member PE Jacket Reliable Outdoor Long Span Installation
ADSS fiber optic cable G652D singlemode
,FRP strength member ADSS cable
,PE jacket outdoor fiber optic cable
Product Name
SJ ADSS Fiber Optic Cable – Singlemode G652D FRP Strength Member PE Jacket Reliable for Outdoor Long Span Installation
Product Description

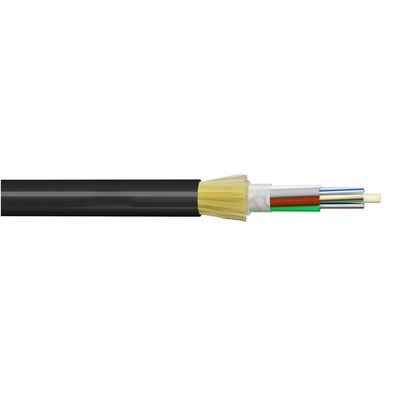

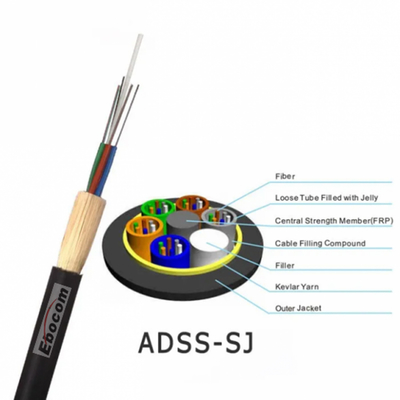

The SJ ADSS (All Dielectric Self Supporting) fiber optic cable is specially designed for long-span aerial installations along power lines and outdoor communication networks. It adopts singlemode G652D fibers housed in a loose tube with water-blocking gel for stable transmission. The cable is reinforced with FRP (Fiber Reinforced Plastic) strength members, ensuring high tensile performance without any metallic elements. The UV-resistant PE outer sheath provides excellent weatherproof protection, making it reliable under extreme outdoor conditions.
Technical Specifications
-
Cable Type: SJ ADSS (All Dielectric Self Supporting)
-
Fiber Type: Singlemode G652D (optional G657A1)
-
Strength Member: FRP (non-metallic)
-
Outer Jacket: Black PE
-
Tensile Strength: Up to 1500 N (depending on span length)
-
Span Length: Suitable for up to 150m installation
-
Operating Temperature: -40℃ ~ +70℃
-
Installation Method: Aerial long-span for power lines and poles
Applications
-
Aerial installation on power transmission and distribution lines
-
Outdoor long-span telecommunication networks
-
Joint projects of power utility and telecom providers
-
Harsh environment installation with wind, ice, or lightning risks
Key Features
-
All dielectric self-supporting structure, safe in high-voltage environments
-
FRP strength members ensure lightweight, durable, and high tensile strength
-
UV resistant PE jacket for excellent outdoor performance
-
Reliable singlemode G652D fibers for stable long-distance transmission
-
Designed for long-span aerial applications up to 150m
